點擊數：2186HR3系列三路軟管卷筒

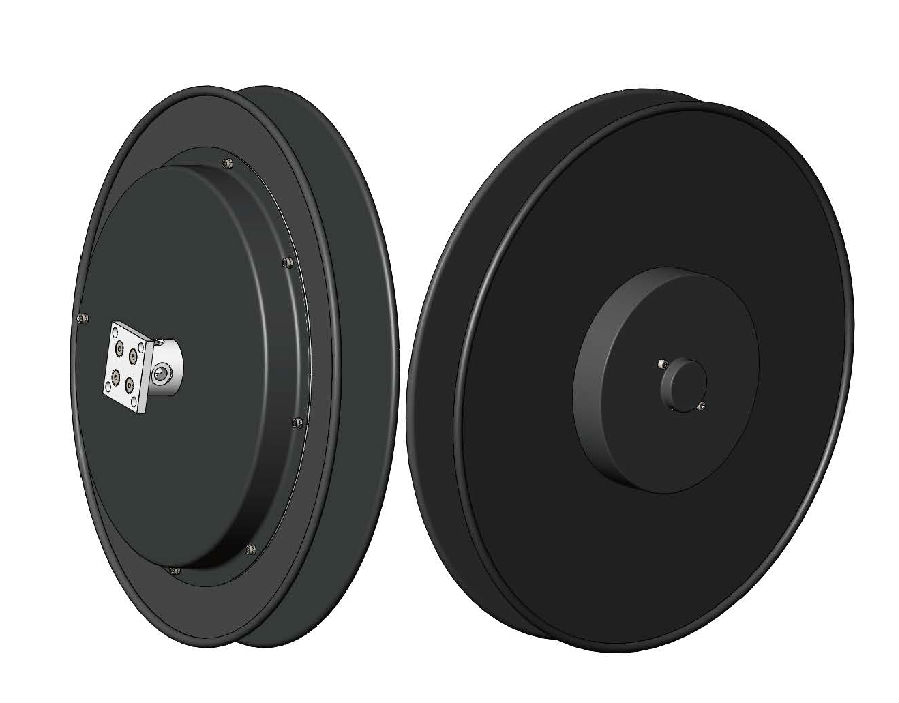

10HR3系列三路軟管卷筒
HR3三路軟管卷筒 最大壓力 | Max. work pressure ：300bar |  |
訂貨實例 | Or der Example
| HR3 | R | 520 | 12 | R7 |
| 雙管型卷筒 | R：右旋 L：左旋 | 盤子直徑 | 軟管內徑 | 軟管類型 |
可選軟管 | Available hose
R7、R8 ：熱塑性纖維編織加強層軟管 | Thermoplastic with textile braid reinforcement
B1：熱塑性鋼絲編織加強層軟管 | Thermoplastic with 1 steel braid reinforcement
B3：合成橡膠2層鋼絲編織加強層軟管 | Rubber with 2 steel braid reinforcement
| 軟管內徑Φ Hose Inside diameter | 型號 Type | 最大壓力 Max.pressure (bar) | 軟管外徑Φ Outside Hose (mm) | 最小彎曲半徑 Min.bending (mm) | 重量 Weight kg/m | |
| Inch | mm | |||||
| 1/4" | 6.3 | R7 | 200 | 12.2 | 30 | 0.19 |
| R8 | 345 | 12.2 | 30 | 0.2 | ||
| B3 | 700 | 14.5 | ||||
| 5/16" | 8 | R7 | 172 | 14.4 | 45 | 0.25 |
| R8 | 300 | 14.4 | 45 | 0.25 | ||
| 3/8" | 10 | R7 | 160 | 16 | 55 | 0.29 |
| R8 | 275 | 16 | 55 | 0.29 | ||
| B3 | 420 | 16.6 | 90 | 0.8 | ||
| 1/2" | 12.5 | R7 | 241 | 20 | 75 | 0.42 |
| R8 | 175 | 18.3 | 85 | 0.6 | ||
| B3 | 350 | 20.2 | 150 | 1.04 | ||

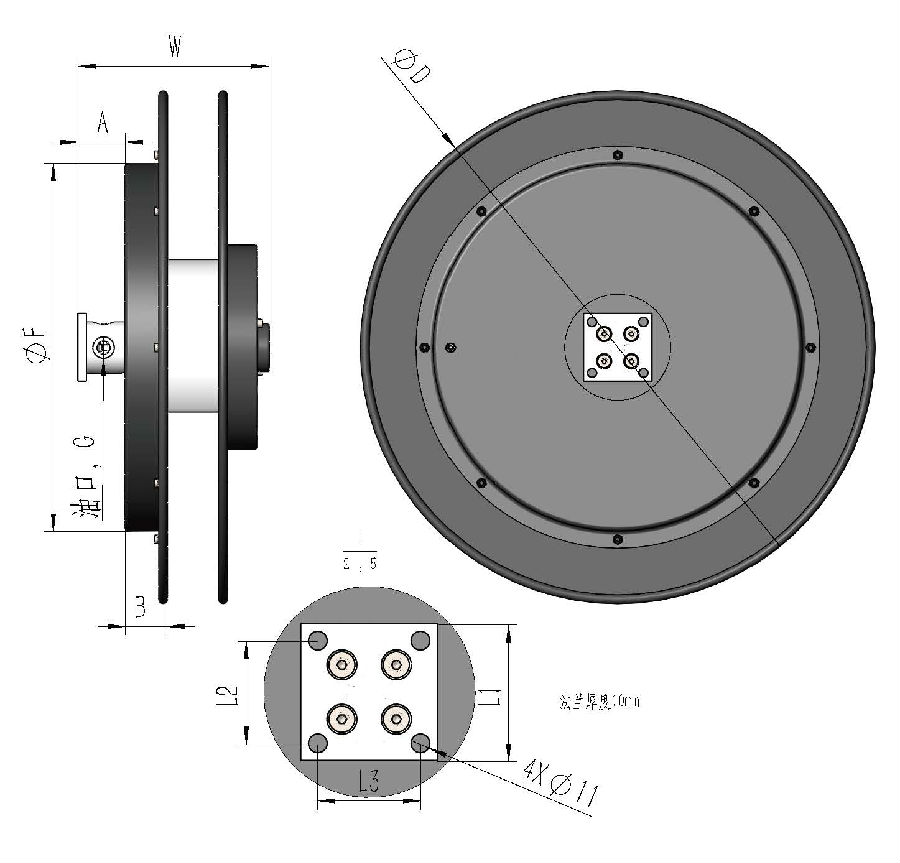

| 型號 Type | A | B | D | E | F | 軟管內徑 Inside Hose | 管型|Hose type-R7-R8-B3 | |
| mm | 總長(m) total length | 工作行程(m) Usable Length | ||||||
| HR3R(L).295.06.XX | 185 | 87 | 295 | 37 | 272 | 1/4" | 3 | 2.7 |
| HR3R(L).295.08.XX | 5/16" | 2.3 | 2 | |||||
| HR3R(L).295.10.XX | 3/8" | 2.3 | 2 | |||||
| HR3R(L).295.12.XX | 250 | 127 | 1/2" | 1.5 | 1.2 | |||
| HR3R(L).320.06.XX | 185 | 87 | 325 | 37 | 272 | 1/4" | 4 | 3.7 |
| HR3R(L).320.08.XX | 5/16" | 3.2 | 2.9 | |||||
| HR3R(L).320.10.XX | 3/8" | 3.3 | 3 | |||||
| HR3R(L).320.12.XX | 250 | 127 | 1/2" | 2.5 | 2.2 | |||
| HR3R(L).340.06.XX | 185 | 87 | 340 | 37 | 272 | 1/4" | 5 | 4.7 |
| HR3R(L).340.08.XX | 5/16" | 4.2 | 3.9 | |||||
| HR3R(L).340.10.XX | 3/8" | 4 | 3.7 | |||||
| HR3R(L).340.12.XX | 250 | 127 | 1/2" | 2.5 | 2.2 | |||
| HR3R(L).370.06.XX | 185 | 87 | 370 | 37 | 272 | 1/4" | 6 | 5.7 |
| HR3R(L).370.08.XX | 5/16" | 5.3 | 5 | |||||
| HR3R(L).370.10.XX | 3/8" | 4.5 | 4.2 | |||||
| HR3R(L).370.12.XX | 250 | 127 | 1/2" | 3.5 | 3.2 | |||
| HR3R(L).400.06.XX | 185 | 87 | 400 | 47 | 272 | 1/4" | 7.3 | 7 |
| HR3R(L).400.08.XX | 5/16" | 6.5 | 6.2 | |||||
| HR3R(L).400.10.XX | 3/8" | 5.6 | 5.3 | |||||
| HR3R(L).400.12.XX | 250 | 127 | 1/2" | 4.5 | 4.2 | |||
| HR3R(L).420.06.XX | 185 | 87 | 420 | 47 | 322 | 1/4" | 8.6 | 8.1 |
| HR3R(L).420.08.XX | 5/16" | 8 | 7.5 | |||||
| HR3R(L).420.10.XX | 3/8" | 6.7 | 5.3 | |||||
| HR3R(L).420.12.XX | 250 | 127 | 1/2" | 4.7 | 4.2 | |||
| HR3R(L).470.06.XX | 195 | 97 | 478 | 47 | 322 | 1/4" | 11.5 | 11 |
| HR3R(L).470.08.XX | 5/16" | 10 | 9.5 | |||||
| HR3R(L).470.10.XX | 3/8" | 9.5 | 9 | |||||
| HR3R(L).470.12.XX | 250 | 127 | 1/2" | 7.5 | 7 | |||
| HR3R(L).520.06.XX | 195 | 97 | 520 | 47 | 322 | 1/4" | 14.5 | 14 |
| HR3R(L).520.08.XX | 5/16" | 12.5 | 12 | |||||
| HR3R(L).520.10.XX | 3/8" | 11.2 | 10.7 | |||||
| HR3R(L).520.12.XX | 250 | 127 | 1/2" | 9 | 8.5 | |||
| HR3R(L).570.06.XX | 195 | 97 | 570 | 57 | 422 | 1/4" | 17.5 | 17 |
| HR3R(L).570.08.XX | 5/16" | 15.5 | 15 | |||||
| HR3R(L).570.10.XX | 3/8" | 13.5 | 13 | |||||
| HR3R(L).570.12.XX | 250 | 127 | 1/2" | 10.7 | 10.2 | |||
| HR3R(L).600.06.XX | 195 | 97 | 620 | 57 | 422 | 1/4" | 21 | 20.5 |
| HR3R(L).600.08.XX | 5/16" | 17 | 16.5 | |||||
| HR3R(L).600.10.XX | 3/8" | 16 | 15.5 | |||||
| HR3R(L).600.12.XX | 250 | 127 | 1/2" | 12.5 | 12 | |||
| HR3R(L).650.06.XX | 195 | 97 | 650 | 57 | 422 | 1/4" | 22.5 | 22 |
| HR3R(L).650.08.XX | 5/16" | 19.5 | 19 | |||||
| HR3R(L).650.10.XX | 3/8" | 17.5 | 17 | |||||
| HR3R(L).650.12.XX | 250 | 127 | 1/2" | 14.5 | 14 | |||
| HR3R(L).700.06.XX | 195 | 97 | 720 | 57 | 422 | 1/4" | 27 | 26.5 |
| HR3R(L).700.08.XX | 5/16" | 22 | 21.5 | |||||
| HR3R(L).700.10.XX | 3/8" | 20 | 19.5 | |||||
| HR3R(L).700.12.XX | 250 | 127 | 1/2" | 16 | 15.5 | |||
| HR3R(L).800.08.XX | 195 | 97 | 820 | 57 | 532 | 5/16" | 30 | 29 |
| HR3R(L).800.10.XX | 3/8" | 26 | 25 | |||||
| HR3R(L).800.12.XX | 250 | 127 | 1/2" | 21 | 20 | |||
| HR3R(L).900.08.XX | 195 | 97 | 920 | 57 | 532 | 5/16" | 38 | 37 |
| HR3R(L).900.10.XX | 3/8" | 34 | 33 | |||||
| HR3R(L).900.12.XX | 250 | 127 | 1/2" | 28 | 27 | |||
